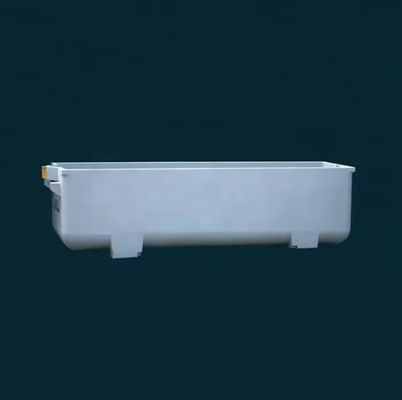

FRP Grp Electrolytic Cell For Copper Lead Nickle Gold Silver Zinc Cobalt Copper Refining Tank

  FRP GRP electrolytic cell for Copper Lead Nickle Gold Silver Zinc Cobalt Copper Refining Tank Industrial FRP Electrolyse

Key attribute

Industry-specific attribute

Other attribute

Packaging and delivery

Supply Ability

Lead time

Customization



FRP electrolytic cells are designed, built and installed to satisfy the most stringent requirements requested by tank house operators worldwide. In most cases their main request is to guarantee full operating availability throughout the plant's lifespan, maximizing production of high-purity metal (copper, zinc, nickel, cobalt, lead or other nonferrous metals) with absolute safety for people and the environment. Additionally, cells must accommodate changes for continuous improvement of the electrolytic process, integrating efficiently with upgrades of complementary equipment such as anodes, cathodes, cap, boards, overhead crane electrolyte agitation systems, acid mist control devices, thermal insulation among many others.

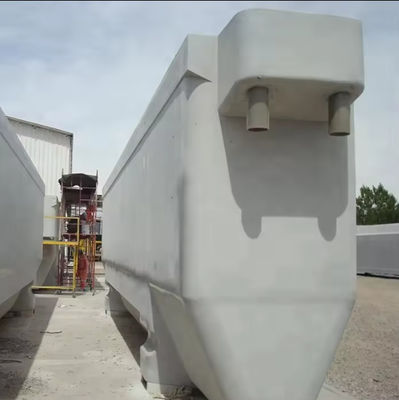

FRP Electrolytic Cells Structure



Electrolytic cells are cast monolithically based on a patented, three-layer composite material system: The Internal layer is a monolithic tank made with multiple layers of fiber-reinforced vinyl ester resin (FRP) complying with chemical barrier international norms that assure long-term impermeability and corrosion resistance. The Intermediate layer is the structural core made with polymer Concrete, with a patented formulation to achieve a low coefficient of thermal expansion, providing long-term structural integrity with low thermally-induced stresses. The External layer is a standard seal layer of FRP that further protects the structural core from electrolyte splashes and spills. Optionally, this external seal may be specified with multi-layered oriented fiber reinforcements to guarantee trouble-free operation in unusually extreme operating environments

Advantage of FRP electrolytic cell



● Long-term impermeability, free of corrosion, 30+ years warranty
Our monolithic internal tank manufactured with multiple layers of fiber-reinforced premium vinyl ester resin. It has continuous service without leakage, free of corrosion and structural flaws which operating under normal conditions as specified for each project.

● Swift, accurate and less costly installation
Electrolytic cells include features that allow reduction of 25% or more in time needed for cell erection, alignment and leveling compared to time required with conventional polymer concrete cells. Dimension tolerances for electrolytic cells are consistently tight, simplifying installation in the most demanding applications, including plants with automated crane systems.

● Minimum cleaning time and water consumption
The rounded internal shape, optional sloped cell floors, and smooth, flat finish of the internal tank, facilitate water sweeping and drainage of heavy sludge, with reduced water usage and accelerating return to service after each cleaning.

● Minimum maintenance cost
The robust, virtually impervious internal tank that is chemically bound to the polymer concrete structural core during molding is tolerant to operating abuse its smooth, non-stick surfaces minimize adhesion of contaminants.

● Maximum operational safety

The structural core of electrolytic cells is bolstered with sturdy external seismic reinforcement blocks confining its floor supports, and includes a robust, internal bidirectional, pultruded FRP bar mesh reinforcement which positively maintains integrity should the cell fail due to catastrophic events. Electrolytic cell installation protocols call for lateral wall collaboration between cells, thus reducing stress levels of cell around 40% under normal operating conditions.

Company Profile

Weifang Yongda FRP Co., Ltd. was founded in 2009, is a professional engaged in glass fiber reinforced thermosetting plastic and other new composite materials research and development, production, sales, service, a comprehensive scale of four-in-one enterprise!
The company's main products: FRP pipes, pipe fittings, FRP purification tower series, biological deodorization filter tank, environmental protection equipment, exhaust gas treatment system, activated carbon adsorption tank, septic tank, cooling tower series, storage tanks, equipment tanks, aquaculture equipment, equipment shrouds, and to undertake anticorrosive engineering, thermal insulation engineering, VOCs purification project.

Translated with DeepL.com (free version)

FRP electrolytic cell is widely used non-ferrous smelting industry anti corrosion equipment, it is suitable for lead, zinc, copper, bismuth, silver etc. Wet smelting non-ferrous metal.

Packaging and Delivery

Why Choose Us

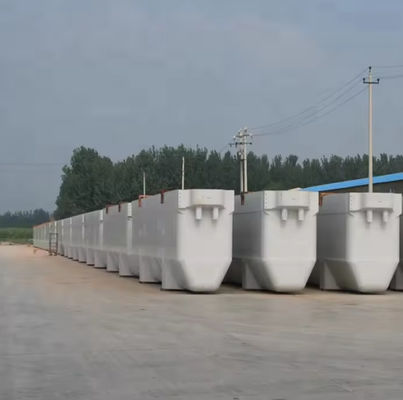

Advanced production equipment

Adequate inventory

Transportation and packaging

FAQ

Q1: What is your company name?

WeiFang YongDa FRP Co., Ltd

Q2: Are you a factory or a trading company?

We are a factory and a professional manufacturer of FRP products. We have more than 50 skilled

technicians. In addition,
we have professional mold engineers for design and production.

Q3: Where is your factory? How can I visit you?

West side of the road about 3 kilometers north of Wenhe Bridge Toll Station on National Highway 206,

Ying qiu Town, Chang Le County, Weifang City, Shandong

Province, China.If you come to our factory,

I will arrange a pick-up for you so that we can meet up faster.

Q4: How can you guarantee the product quality?
We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the

professional QC team, and each our package worker will be in charge of the final inspection according

to the QC instruction before packing.

Q5: Can you do OEM for me?
We accept all OEM orders, just contact us and give me your design,we will offer you a reasonable

price ASAP.

Q6: What payment methods do you support?
T/T, L/C. western union
